AAW M20 Universal In-Ear Monitor

What is M20

‘‘A design that truly brings out the armature driver’s qualities’’.

It is not about achieving higher specs, but rather what we can do to utilize the design for a higher level of perceived enjoyment and a more immersive experience in listening!

M20 - the end result after a year worth of product research, houses a large format and fast bass armature woofer driving a lot of air, implemented to pair with the AAW proprietary NOVA driver, quite alike traditional speakers with a super tweeter.

Now you can hear very deep and layered bass, charming and full-bodied vocal and even fine details in the ambiance thanks to the new tweeter innovation and synergy of the design.

Design Story

The original M20 is one of AAW’s earliest launching models back in 2015. Based on the Sonion acuPass technology, M20 was a strong contender in the 2BA setup at the time. Fast-forward to 2023 and we decide to revive the name and implement a slew of change to modernize M20 with digitized acoustic design, 3D printing and NOVA driver technologies. In the end we are answering with the new design that houses not only specifications that goes up the roof, but concrete driver implementations allowing the design to scale up with sources and reflects the mastering’s quality, despite with only a simple 2 driver architecture.

Nozzle-less Open Vented Armature (NOVATM) Driver

In this hybrid structure, we choose to use a specially designed armature driver with an open front acoustic vent and embedded it deep into the M20's 3d printed nozzle. The proximity to the user eardrum eliminates sound pressure decay and any unwanted resonance in a typical tubed balanced armature design.

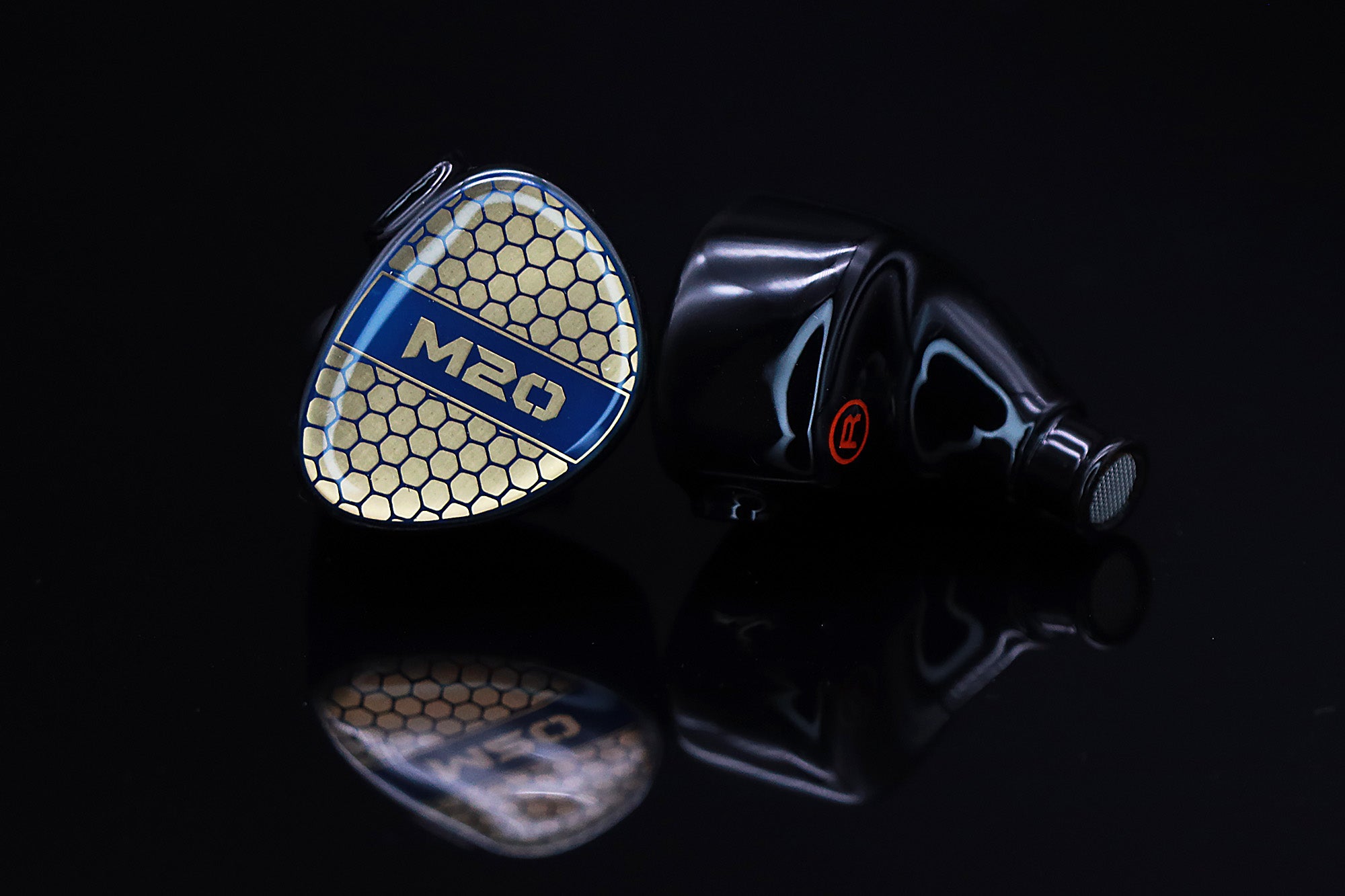

3D Printed Enclosure and Precision Engineering

With a wholly digitized design process, M20 employs AAW 2nd generation digital enclosure and acoustic chamber design. Driver and nozzle placements are simulated hundreds of iterations to determine the ideal phasing and response. It is then 3D printed to precision to maintain consistency in mass production.

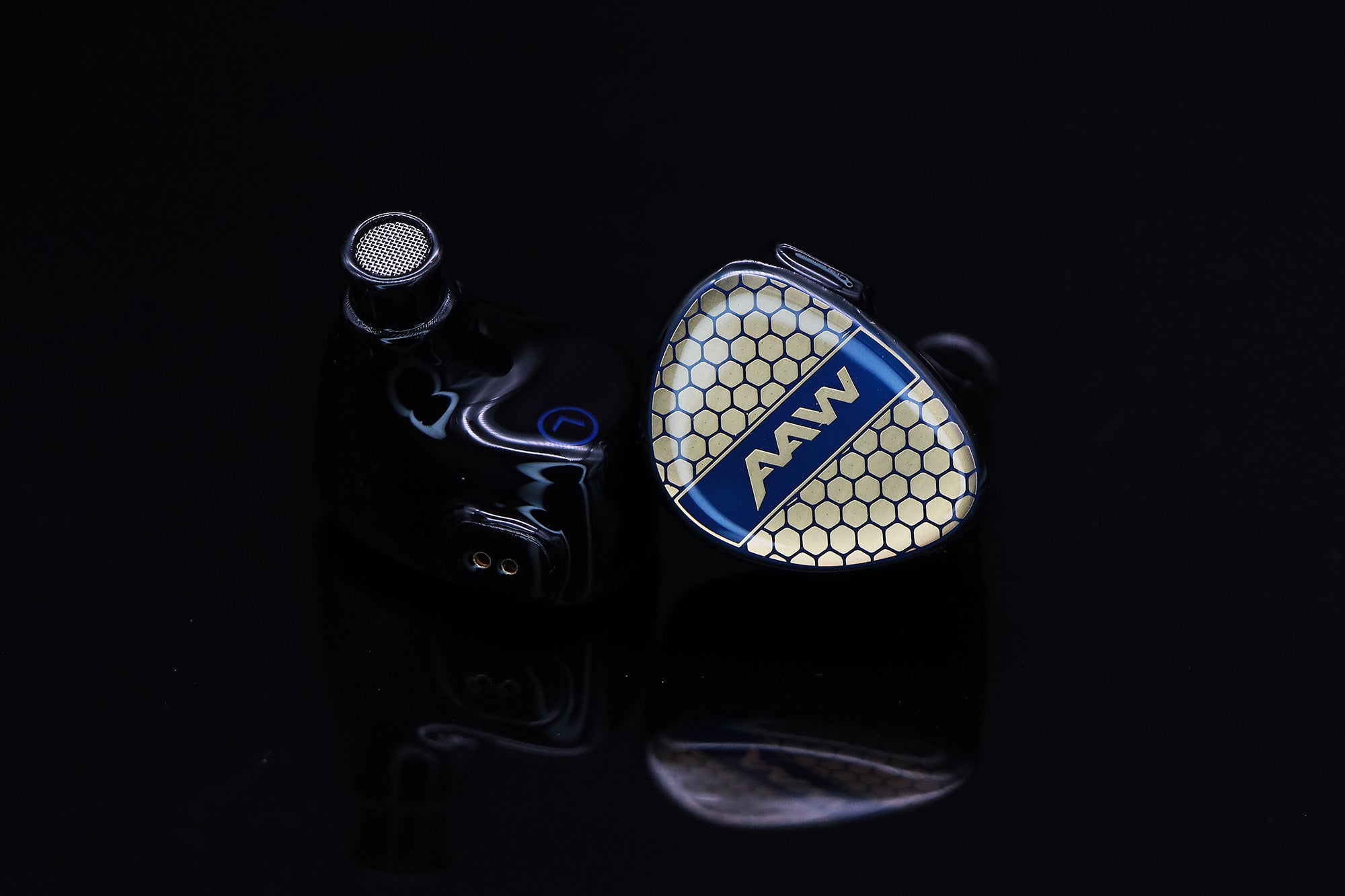

Exclusive Faceplate Design

M20’s faceplate design employs a new technique called Electroless Immersion Gold, the unique process allows us to achieve complex designs over tiny acre of space.



Suitable for band performances, performing artists, worship events, audio engineering and anybody who appreciates exceptional listening experience.

Specification

  • 2 Way Passive Crossover
  • 10Hz-40000Hz Wide Band Performance
  • <0.5% Total Harmonic Distortion
  • 106 Ohm High Impedance Design
  • 115dB High Sensitivity
  • Dual bore design

*Specification and internal parts for Custom Version is slightly different to accommodate changes when switching from universal to custom housings

Accessory and Warranty

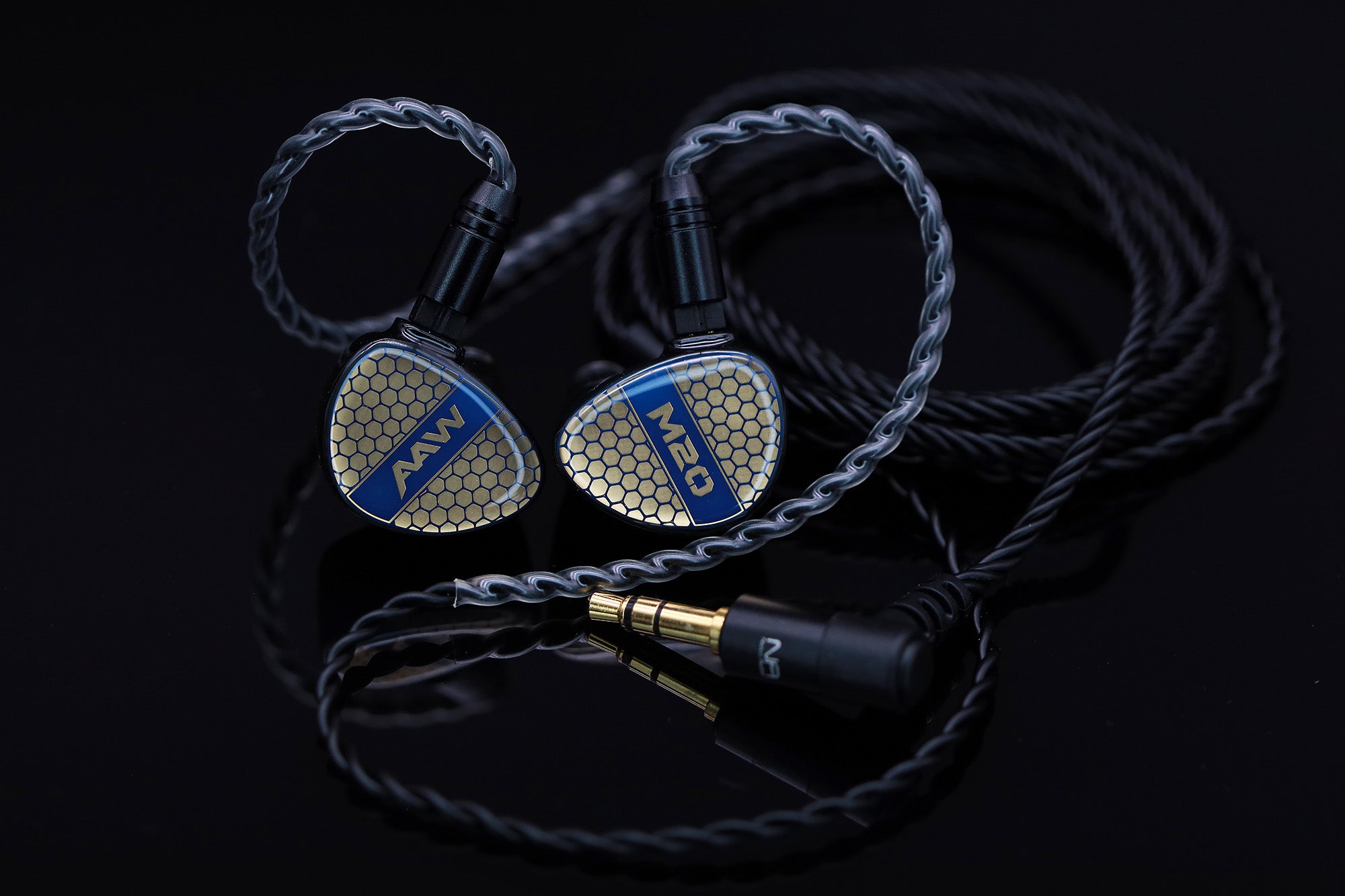

  • 48" Null Audio Brevity Plus Copper Cable
  • AAW Carrying Case
  • Cleaning Cloth
  • Assorted Ear Tips
  • 2 Year Limited Warranty

Lead Time

Ready in stock, immediate shipment.
